Aggregate Testing Lab Equipment

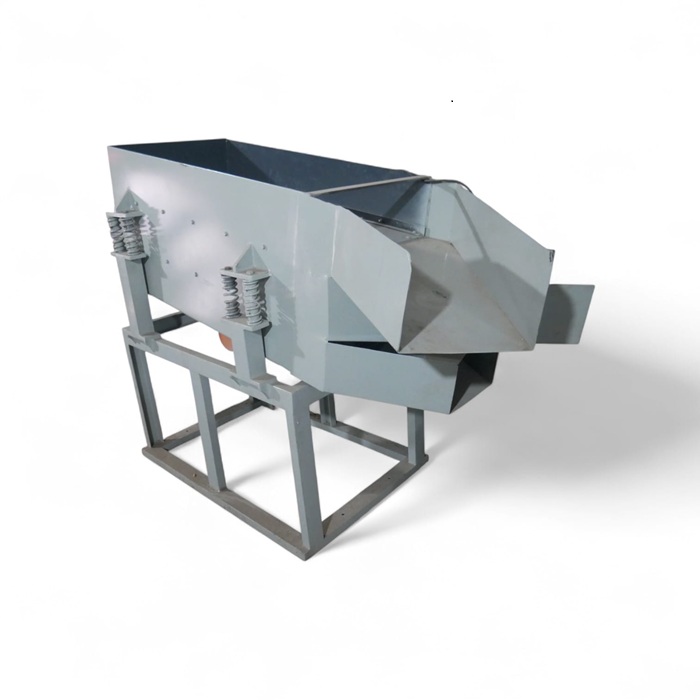

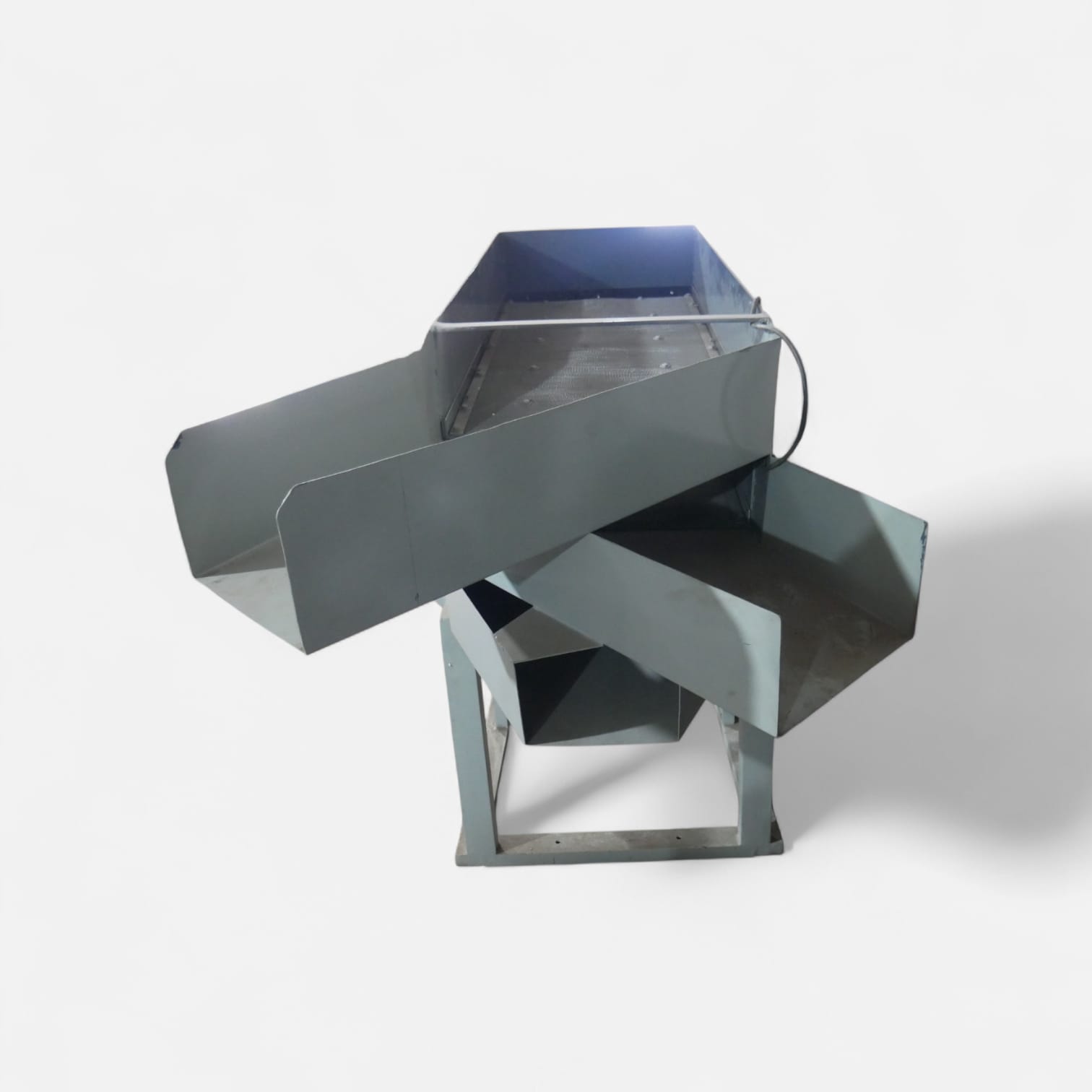

Vibrating Screen
Business Type: Manufacturers, Exporters, Suppliers, Retailers, Wholesalers
Make: Setest India
Origin: India
Model No.: SET-1419
Technical Specifications:
| Size of Screen | g>: 600 mm Width X 1200mm Long |
|---|---|
| Model | : VS612/LAB |
| No. Of Deck | : Double Deck.( Top deck for passing 2 mm product and Bottom deck for 1 mm product) |
| MOC of Screen | : SS304 materials fabricated with Metal Clamp |
| MOC of Body | : 6 mm thick M.S Plate fabricated side Body to be welded with thick M.S Flat and Angle etc. |
| MOC of Stand & Base Frame | : Heavy Section fabricated M.S Channel and Angle to be used. |
| Chutes | : Front Chute , Bottom Chute and oversize Chutes to be fabricated from 3 mm thick HR Sheet. |
| Motor | : 3 HP 1440 RPM, AC 3 Phase , TEFC Motor, IE2 Series CGL/ABB/BBL make Motor to be fitted. |
| Drive | : Machine to be driven through Eccentric Shaft, Counter Weight arrangement by V – Belt , V – Pulley Drive |
| Speed | : 900 RPM. |
| Materials to be Screened | : Mn. Ore / Iron ( After Crushing by Roller Crusher) |
| : | |
| Capacity | : 100-200 Kg/Hour |
| Machine Installation Space | : 1600 mm Long X 1000 mm Width X 1800 mm Height ( Approx) ( including Motor Base Frame) |
Scope of Supply
Vibrating Screen to be supplied in assembled condition fitted with Body, Integrated Base Frame, Motors, Wire Nets( (SS) , V Pulley , V- Belt , all Discharge Chute , Guards etc. duly painted condition But without Starter Foundation Bolt , Electrical Cable and Extra any Spares etc.
