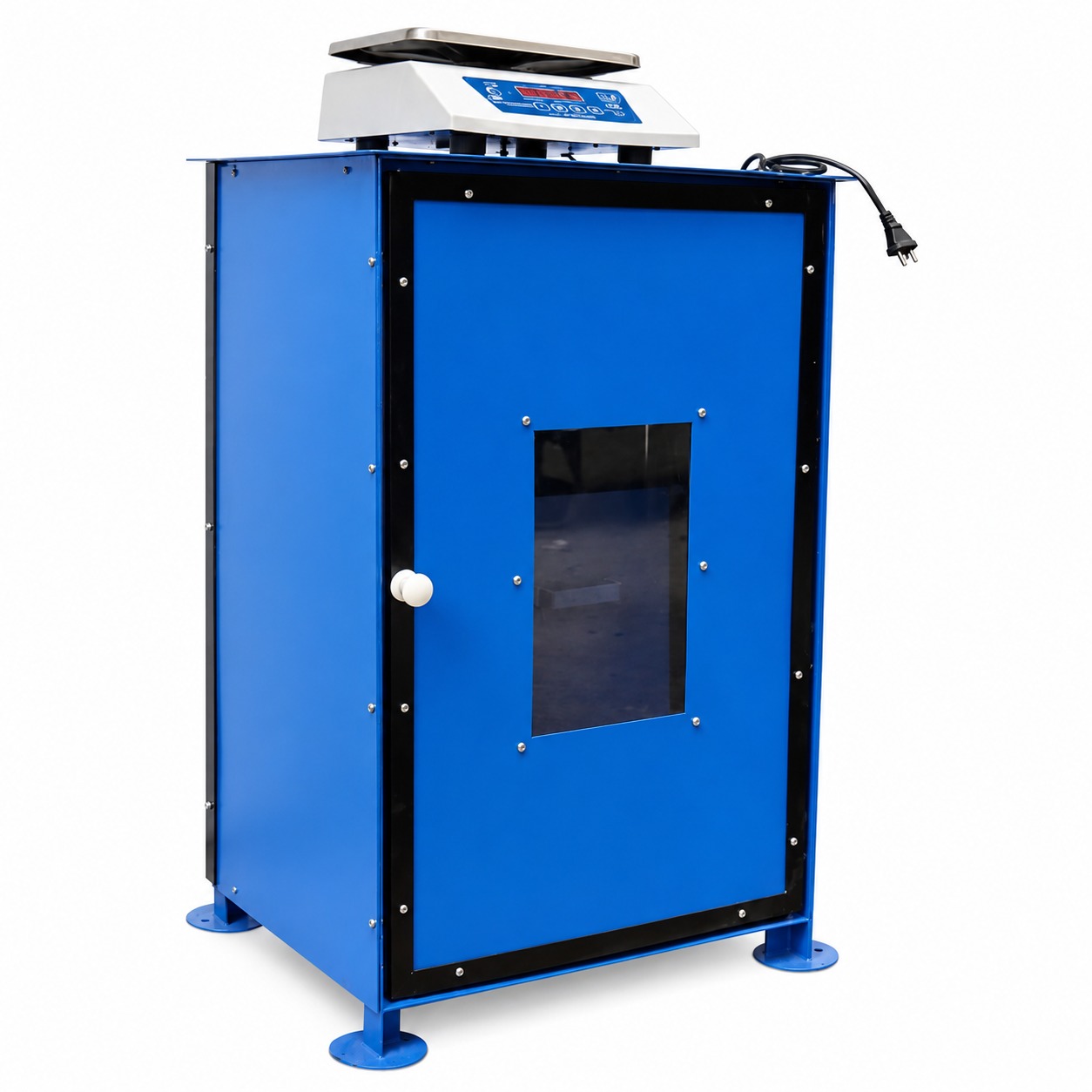

Specific Gravity And Water Absorption Of Aggregates

Business Type: Manufacturers, Exporters, Suppliers, Retailers, Wholesalers

Make: Setest India
Origin: India

Model No.: SET-1405

Standards: IS 2386 (PART III) and BS 812

The Specific Gravity and Water Absorption of Aggregates are used for the purpose of measuring the strength as well as the quality of the material. On the other hand, the water absorption test determines the capacity of coarse and fine aggregates to hold water.

The specific gravity and water absorption of aggregates apparatus are mainly comprised of a rigid frame, which comes equipped with a water tank that stays mounted on a platform. Specific gravity and water absorption of aggregates is a mechanically fitted lifting device, the function of which is to raise the water tank along the height of the frame. Specific gravity and water absorption of aggregates capacity of 0.1g to 5kg accuracy, which is made available, can also be utilised as a proper weighing device. This density basket hangs on the bottom of the balance for measurement of results and proves to be quite a useful and versatile system of weighing in laboratories.

Specific Gravity Frame Specification:

• Specific Gravity Frame Electronic balance
• Specific Gravity Frame capacity 15 kg.
• Specific Gravity Frame Least Count 0.5 gram, provision is made in this balance to suspend density basket under material pan.
• Specific Gravity is mounted on an angle iron frame stand. 1 No
• Density basket 200 mm diameter x 200 mm height 3.35 mm. 1 No
• GI Tray of area not less than 450 cm sq. 1 no.
• Absorbent cloths 75cm x 45cm. 2 Nos.

Accessories:

• Air tight container with density basket
• GI Tray area 650 cm sq.
• Absorbent cloths 75cm x 45cm. 2 Nos.
