Concrete Testing Equipments

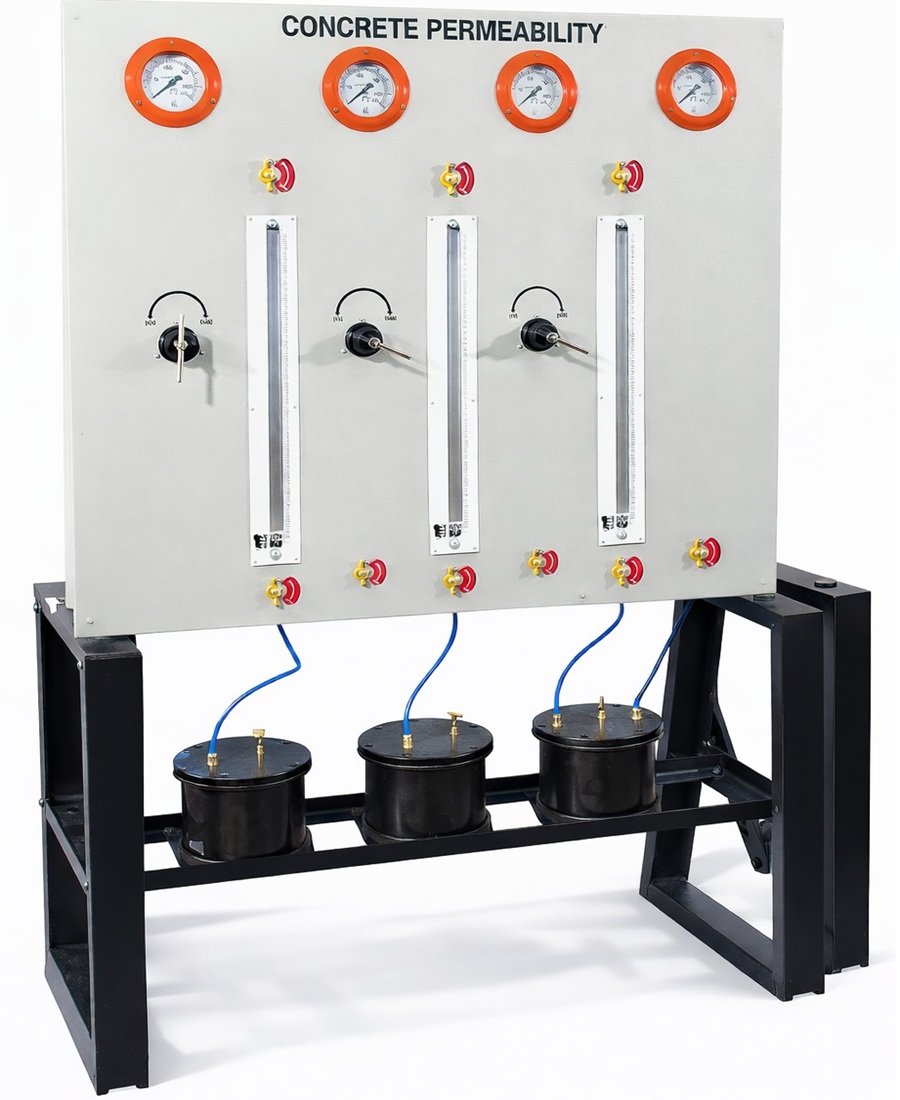

Concrete Permeability Test Apparatus Three Gang

Business Type: Manufacturers, Exporters, Suppliers, Retailers, Wholesalers

Make: Setest India
Origin: India

Model No.: SET-1144

SE-Test India Pvt. Ltd. is a famous organization, which is a renowned manufacturer and supplier of concrete permeability tet apparatus three gang. The organisation has national and international.

The Standard of the Concrete Permeability Apparatus Three Gang :

SE-Test India Pvt. Ltd. maintains approved quality standards of IS 3085 and DIN 1048. Thus, we have made a reliable image and have made permanent clients in India and all over the world.

Concrete Permeability Apparatus Three Gang Product Description :

concrete permeability test apparatus three gang is available for 6, 9, 12, and 18 cells. Concrete Permeability Apparatus of the apparatus is 500cc for measurement of the draining water. The pressure regulator can regulate up to 0–15 Kg/cm2. The air pressure compressor is applied to a 2 HP capacity.

Note: The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure from 0–15 kg/cm sq. A gauge is used to indicate the pressure in the cell. A foot pump and a pressure tube are supplied to develop pressure in the chamber. The apparatus is supplied with a measuring cylinder 500cc to measure percolated quantity to water.

Concrete Permeability Apparatus Three Gang Manufacturers Specification:

  • It encompasses mild steel cell of the cross section in either round or square shape.
  • The cells are connected with the pressure chamber
  • The entire assembly is stood on a stand, where a T connector is mounted rubber hosepipe and sleeve packed valve.
  • The assembly of the cells is connected with a base plate and at the top; it is connected with the nozzles.
  • The pressure chamber has a regulator to control the air pressure in it.

Note:

  • Pressure can also be applied; by a pressure air line or by a compressor (2 HP capacity), can be supplied at an extra cost.
  • Model available for 6, 9, 12, 18 cells concrete permeability test apparatus three gang.
