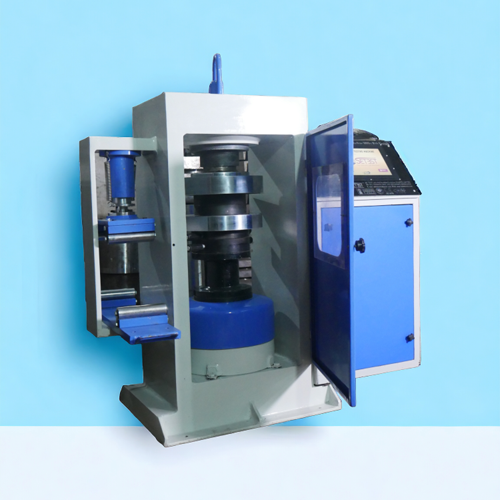

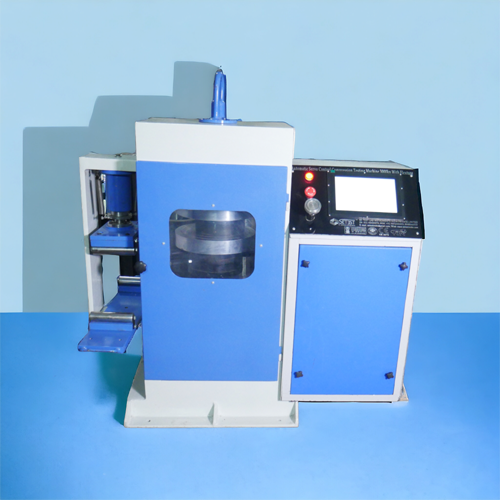

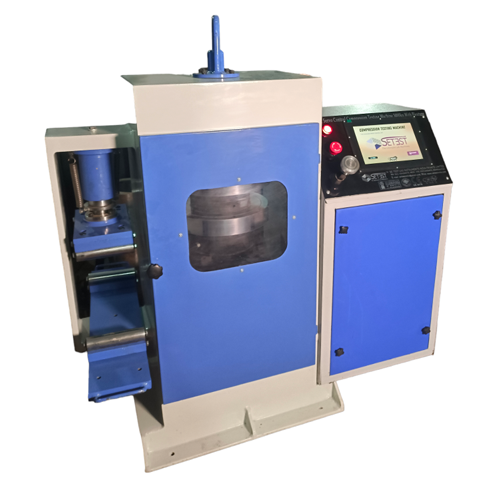

Fully Automatic range of compression testing machines supplied by SE-Test is one of the best in its range. The machine is perfect for meeting the requirement for a consistent and proper testing of the concrete samples. Our compression machines mainly comprise of the following important parts, i.e. Frame, Touch Screen, Control System and Power Pack with Servo motor. Each such important part of the machine has been fabricated with higher degree of care and mechanical adaptability to ensure smooth testing.

Load Frame:

The load frame may be a welded steel fabrication carrying the ball-seated higher platen. absolutely situated on the loading ram that is protected against trash by a canopy, the lower platen is marked for the centering of cube and cylinder specimens. the size of the frame permits the testing of concrete cylinders up to 150x320mm, 100mm, 150mm and 200mm cubes.

We are provided complete with 50mm and 100mm solid spacer for distance shorter. To check samples shorter than a hundred- and fifty-millimetre additional distance items ought to be ordered. All machines are furnished with front and rear removable safety doors. All frames have one acting up stroking ram with over travel protection to prevent the motor once the most platen travel be reached.

Touch Screen:

• Separate window for Compression & Flexure
• Direction Ball Valve for CTM and FTM direction.
• Programmable rate of loading
• Automatic testing cycle along with a standard rapid approach
• Peak Load, Peak Stress, Unique Record No. is displayed.
• Real time load vs time graph in computer software
• Two-way software real time load vs time graph
• Automatic data transfer and save in your computer software.
• Inching/fast lift operation to adjust gap between sample and upper platen
• Screen has provision to configure more than one Mode. Mode 1- Compression/Mode2 Flexure/Mode3-Prism Testing/Mode4-Tensile Splitting Strength.
• Peak stress calculation based on sample type and shape.
• Start, Stop & Reset.
• Touch Screen Keyboard.
• Automatic Pace rate Control to set value
• Accurate load rate control with in ±2% from 1 kN/sec to 15 kN/sec
• Data storage up to 10000 specimens
• SI, Metric, Imperial units
• Connect with Wifi and Control through your mobile.

Power Pack

• 750 W power
• Real time clock and date
• 20-liter oil capacity
• 60-100 mm/min fast approach speed
• Noise less power pack.
• Real time clock and date
