Standards: IS 516, BS 1881

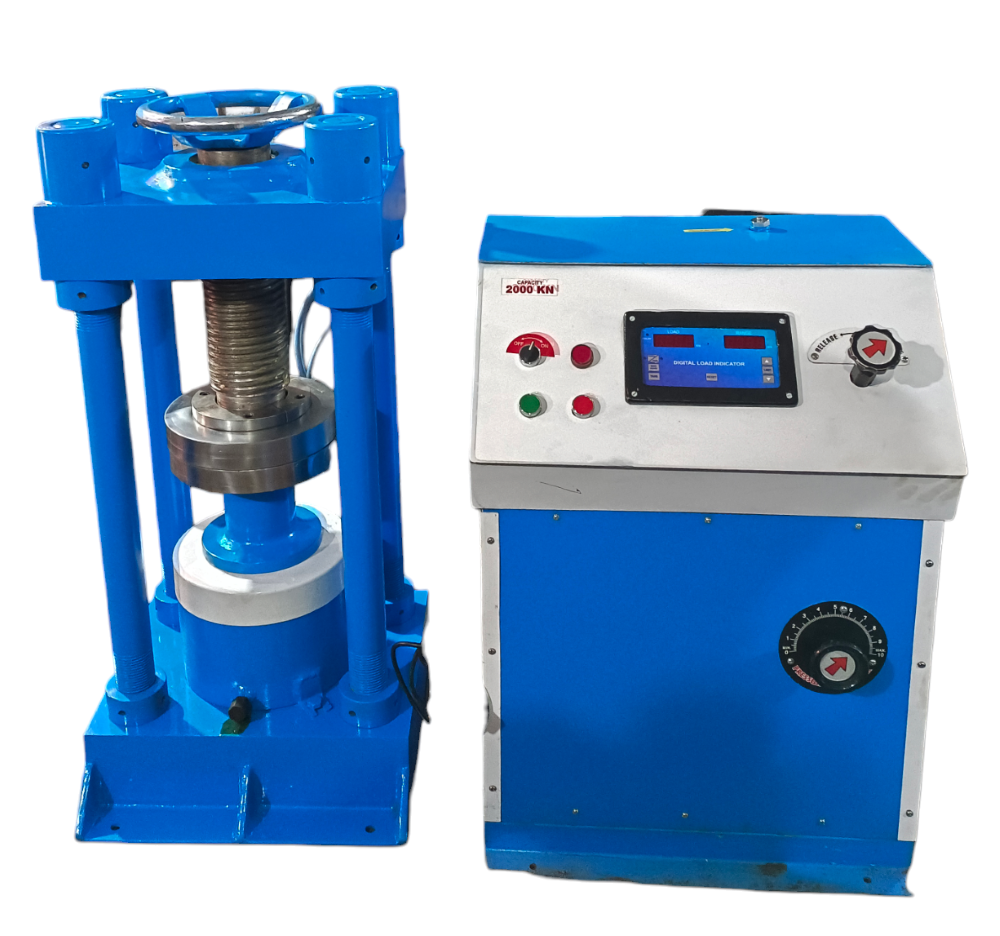

Specification: The load frame is made up of high quality steel construction with a fixed Upper lead carrying a ball seated platen. 4 pillars are fixed to the base and the top plate of the loading frame. The upper and lower plates are adjusted with the help of a head screw on either side of the pillar. The ram dia of the machine varies from the requirements of the customer. The lower pattern is at the base of the frame above the ram and it is rectangular in shape. Sufficient clearance is provided between the platens to allow the cylindrical or cube moulds to fit in. A spacer is provided to adjust cubes and cylinders. A 20 cm dia. pressure gauge with a maximum load induction pointer is fitted on the top panel and, in turn, is connected to the hydraulic pressure pipe.

Ranges: 50 kN to 3000 kN
