Cement Testing Lab Equipments

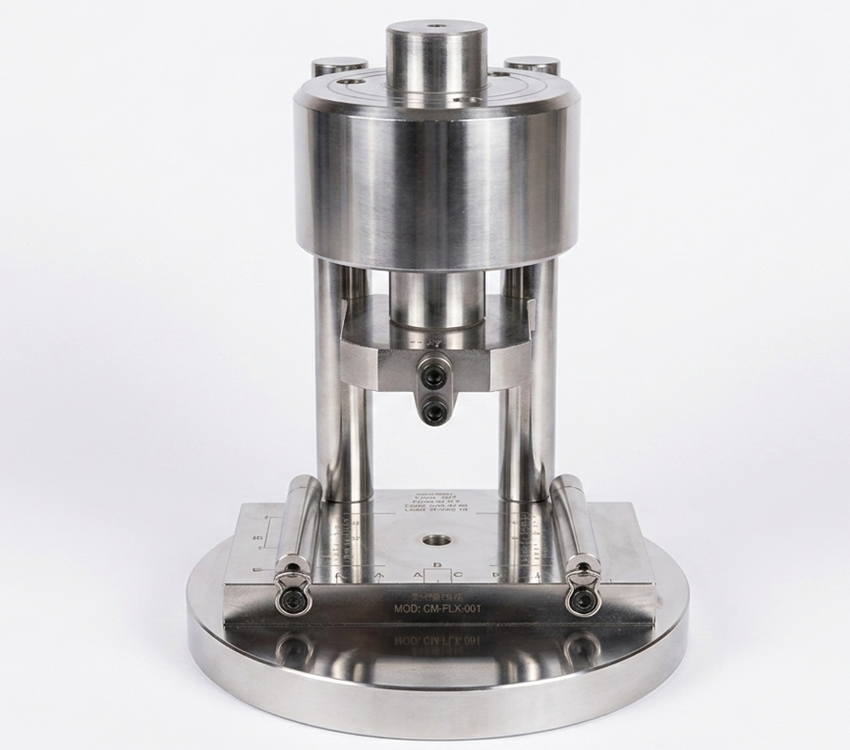

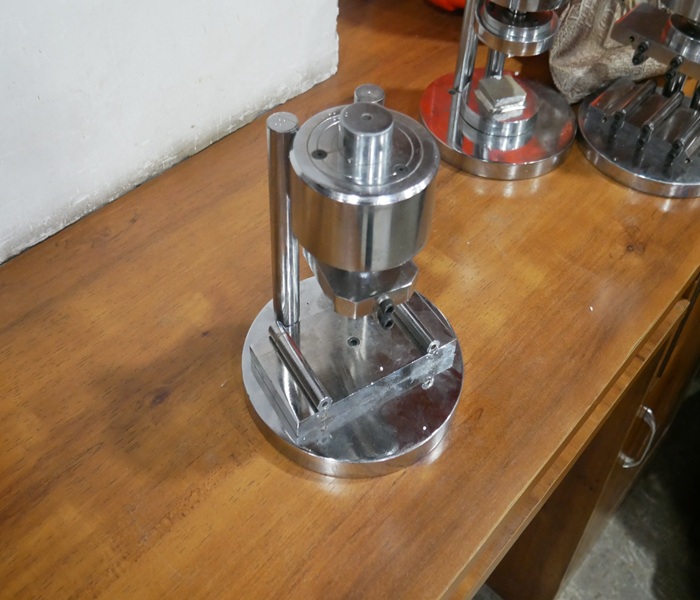

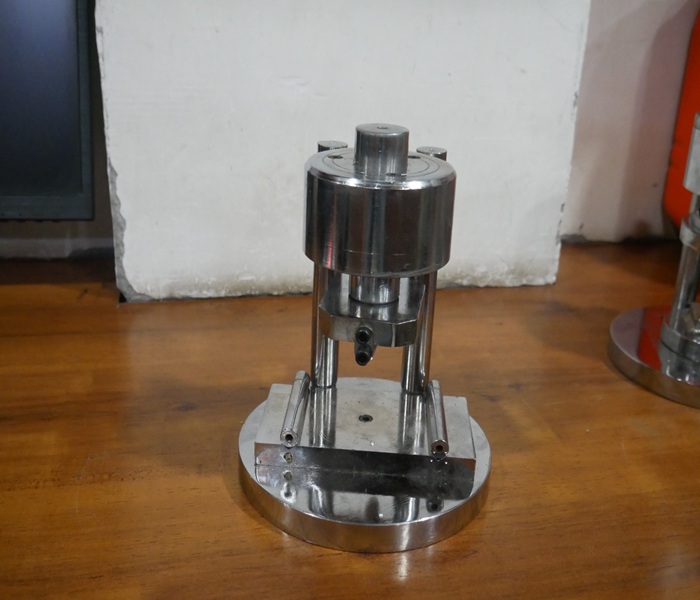

Cement Mortar Flexural Testing Jig
Business Type: Manufacturers, Exporters, Suppliers, Retailers, Wholesalers
Make: Setest India
Standards: EN 196-1 EN 1015
Origin: India
Model No.: SET-1031
COMPLIANCE STANDARDS:
EN 196 (PART-1), EN 1015 (PART-11) IS:4031 (PART8):
DETAILS:
- The flexural jig is designed for testing of 40 x 40 x 160mm cement prism.
- The frame is fitted with roller beaters accordance to EN 196-1.
- Robust frame fitted with an upper bearer that moves vertically supported by springs.
- One of the two lower bearer can tilt horizontally and the distance between the two
bearers is 100mm.
- The lower bearer (supporting roller) are of length between 45-50mm, having (10+-
0,5)mm diameter.
- The upper bearer also has same length between 45-50mm, having (10 +-0,5)mm
diameter.
- Total height 188mm.
Note:
Note:
The compression/ UTM machine capable enough to exert 50 N/S loading rate for
accurate result as per above listed EN Standard is available
DETAILS:
- The flexural jig is designed for testing of 40 x 40 x 160mm cement prism.
- The frame is fitted with roller beaters accordance to EN 196-1.
- Robust frame fitted with an upper bearer that moves vertically supported by springs.
- One of the two lower bearer can tilt horizontally and the distance between the two bearers is 100mm.
- The lower bearer (supporting roller) are of length between 45-50mm, having (10+- 0,5)mm diameter.
- The upper bearer also has same length between 45-50mm, having (10 +-0,5)mm diameter.
- Total height 188mm. Note:
Note:
The compression/ UTM machine capable enough to exert 50 N/S loading rate for accurate result as per above listed EN Standard is available
