SOIL Testing Lab Equipment

Automatic Direct Shear Test Apparatus

Business Type: Manufacturers, Exporters, Suppliers, Retailers, Wholesalers

Make: Setest India
Origin: India

Model No.: SET-1259

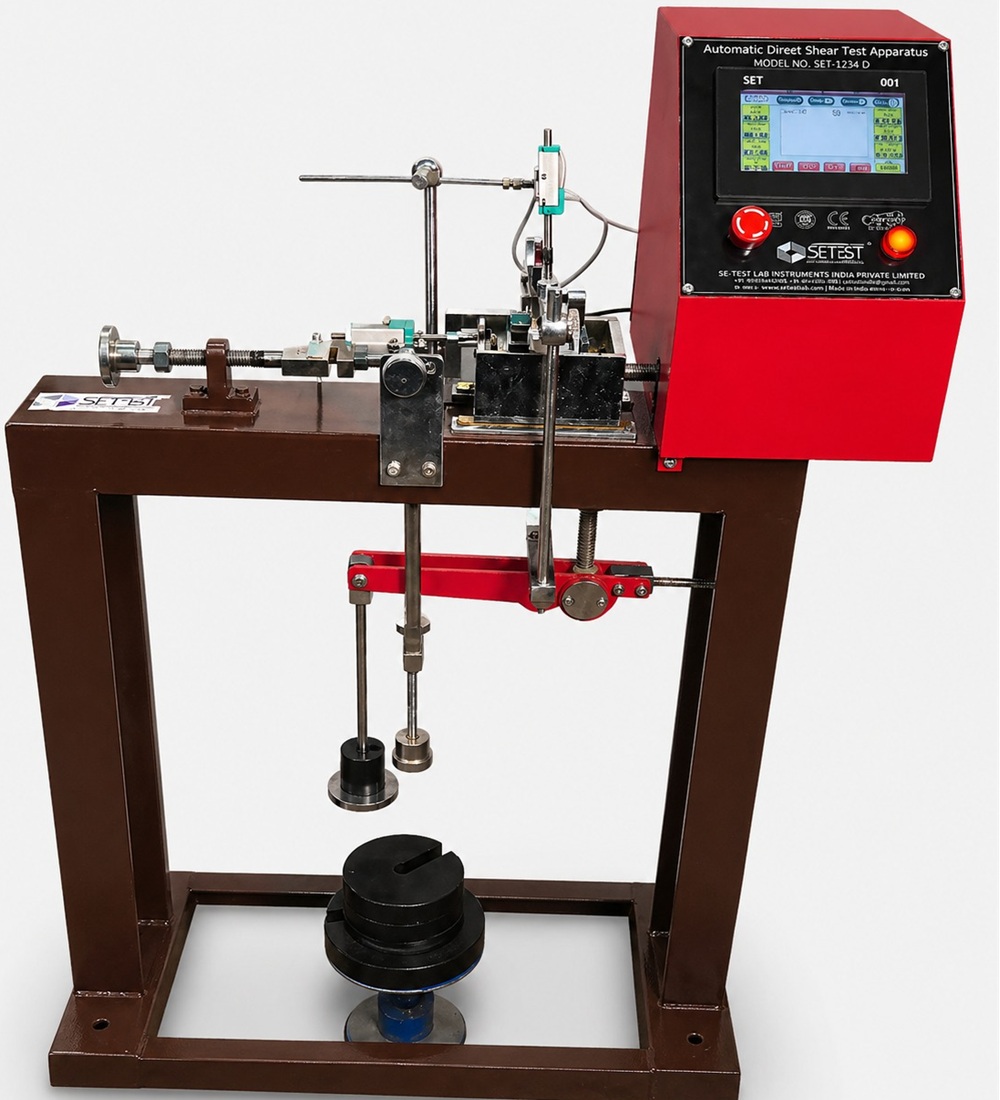

The Automatic Direct Shear Apparatus is used for the determination of the direct shear strength of soil specimens. Se-Test India direct shear testing apparatus utilizes a square box divided horizontally into two halves and box containing the sample is placed in a water jacket and subjected to constant normal load while a horizontal force is applied till the specimen fails along the plane of juncture of the two halves.

The Automatic Direct Residual Shear Testing Machine comes complete with: digital control of speed and data acquisition unit; infinitely variable speed drive from 0.00001 to 9.000000 mm/min via servo motor; a wide-screen TFT control unit; 1/9, 1/10, and 1/11 loading ratios; a 5 kN load cell; a 25 x 0.001 mm linear potentiometric displacement transducer (for horizontal displacement); and a 10 x 0.001 mm linear potentiometric displacement transducer (for vertical displacement).

Applicable Test Standards for Automatic Direct Shear Test Apparatus

  • ASTM D2166, D2435, D3080, D4186, D4546, and D6528
  • AASHTO T 208, T 216, and T 236
  • BS 1377-5, 1377-7
  • ISO/TS 17892-5, 17892-10
  • AS 1289.6.6.1, 1289.6.2.2

Specifications for Automatic Direct Shear Test Apparatus

  • Accurate displacement rate control from 0.00001 to 9mm min)
  • Vertical travel: 44.5 mm (1.75 in)
  • Horizontal travel: +/- 25.4 mm (1.00 in)
  • Dimensions: 660 x 406 x 813 mm (26 x 16 x 32 in)
  • Weight: 63 kg (140 lbs)
  • Shear boxes: 63.5 mm (2.5 in) standard; many options available (up to 100 mm (4.0 in)), including special
  • Stress (load) or strain (displacement) control
  • Tabletop design saves space.
  • Fully automated via a computer or standalone capability for control and data collection
  • Full automation of residual shear testing
Maximum shear force 5 kN
Maximum vertical force 5 kN
Maximum horizontal travel 150 mm
Test speed from 0.00001 to 9.00000 mm/min
Sample type and size up to 100 mm square or round
Overall dimensions 1040 x 350 x 1200 mm (l x d x h)
Multivoltage 230 V, 50 Hz or 110 V, 60 Hz
Weight 130 kg
