Bitumen and Ashphalt Testing Lab Equipments

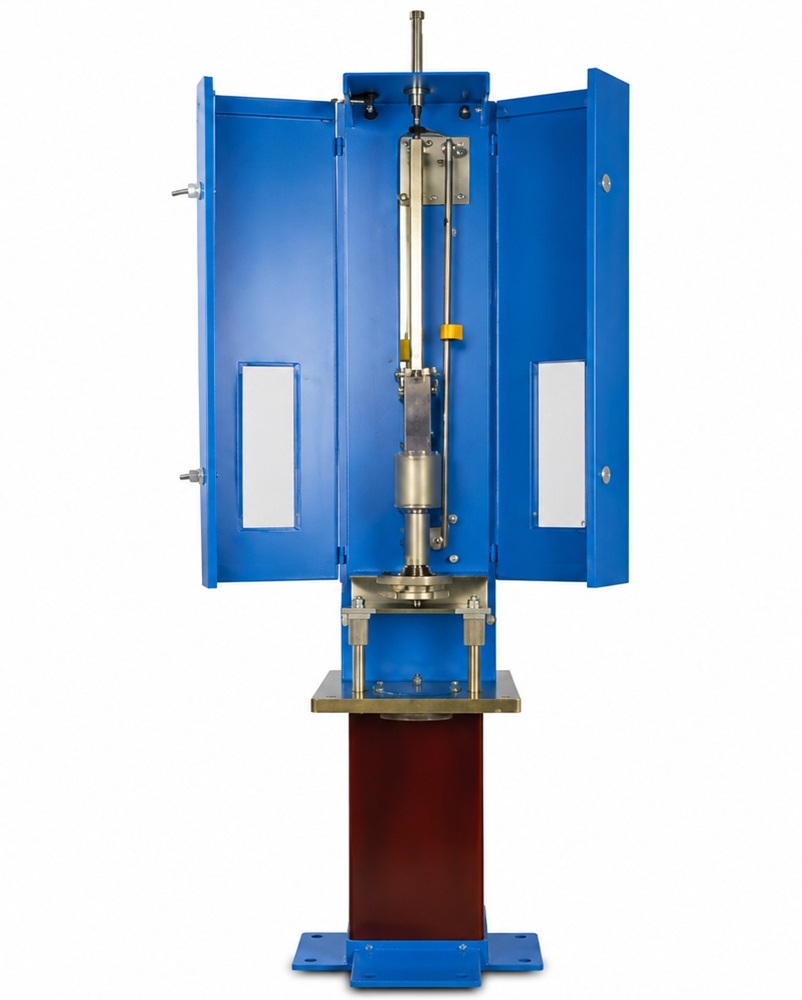

Automatic Compactor For Bituminous Mixes

Business Type: Manufacturers, Exporters, Suppliers, Retailers, Wholesalers

Make: Setest India
Origin: India

Model No.: SET-1317

Automatic Compactor For Bituminous Mixes Description: SE-Test India is the apparent name as a manufacturer and supplier of testing equipment or instruments. SE-Test India’s instrumented automatic compactor for bituminous mixes apparatus (model no. SET-1317) conforms to the BS 598-107 industry standards. This instrument is used to speed up the process of preparing the specimens with ease and accuracy as it is fully automatic. It automatically compacts the specimens or samples and stops after the preset number of blows are completed on the blow counter. With the Automatic Compactor for Bituminous Mixes, you can achieve an even degree of compaction across samples for reliable testing. It ensures the rugged construction can withstand hard work by eliminating the laborious process of manual compaction.


  • The 4.5 kg weight can be lifted with a driven mechanism and dropped from the correct height of 457 mm.
  • Supplied with rammer foot which facilitates the preheating and is easily removable.
  • A compaction pedestal along with specimen holder is mounted to the base.
  • An automatic blow counter which enables the blows in test and automatically stopped once the machine completes the task.
  • Voltage: 230 V A.C. of 50 Hz with a single phase supply.

Note: Can also be made available for modified compaction test for 10.2 Kg.
